KE 520 SQUARE BALERS

SQUARE BALERS

KE 520

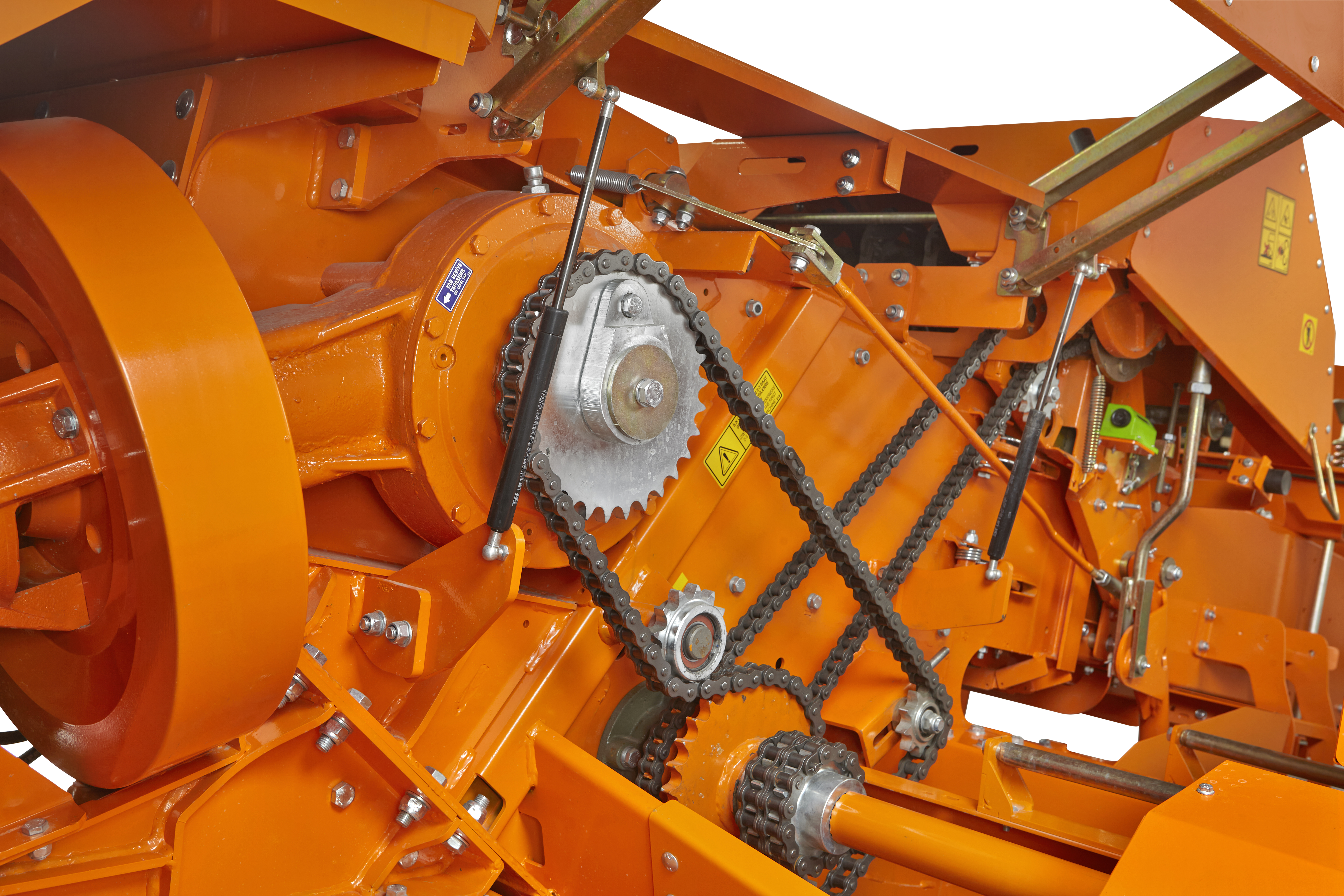

KE 520 Square Balers with Chopper Unit;

Thanks to the center-work and feeding fork system KE 520 has more collecting and knotting efficiency. Also it provides none soil compaction because of equal weight balance.
KE 520 works with high performance and efficiency because of quality of knotter set and fan which is working non-stop to keep clean the knotter set.

PICK-UP SYSTEM
Width	mm	1930
Bar Gap	mm	66
Number of Tines		112
Chopper Unit		-
BALE CHAMBER
Stroke	mm	520
Piston Speed (540 /min)	Stroke/min.	105
Feeder Window	cm²	1248
BALE SPECIFICATIONS
Bale Dimensions	mm	360 x 460
Bale Length	mm	300 - 1350
Bale Weight	kg	20 - 35
Productivity	Bale/h	280
Knotter Set		2-3 twines
TRANSPORT DIMENSIONS
Weight	kg	1850
Length of Baler (on road)	mm	4650
Length of Baler (on duty)	mm	5570
Width of Baler	mm	2600
Height of Baler	mm	1820
Minimum Power Requirement	HP	45
PTO	rpm	540
Transmission		1 Shaft
