KE 1290 HALF CHAIN ROLL ROUND BALER

HALF CHAIN ROLL ROUND BALER

24 Knife Mower Conditioner System

The bale chamber allows for seamless roll bale production with a semi-chain system.

Bale drop support arm

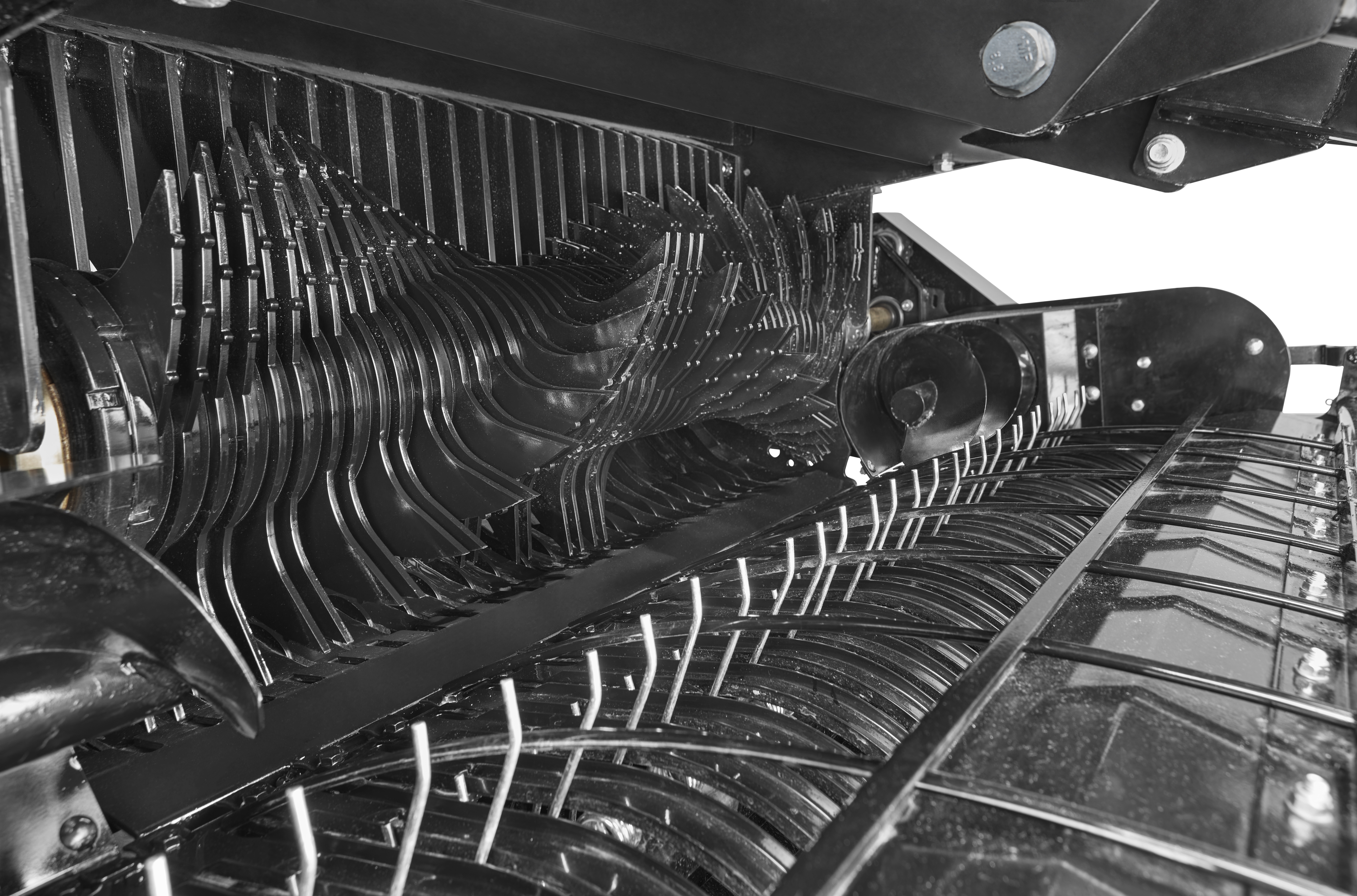

Wide collection system for rapid product flow

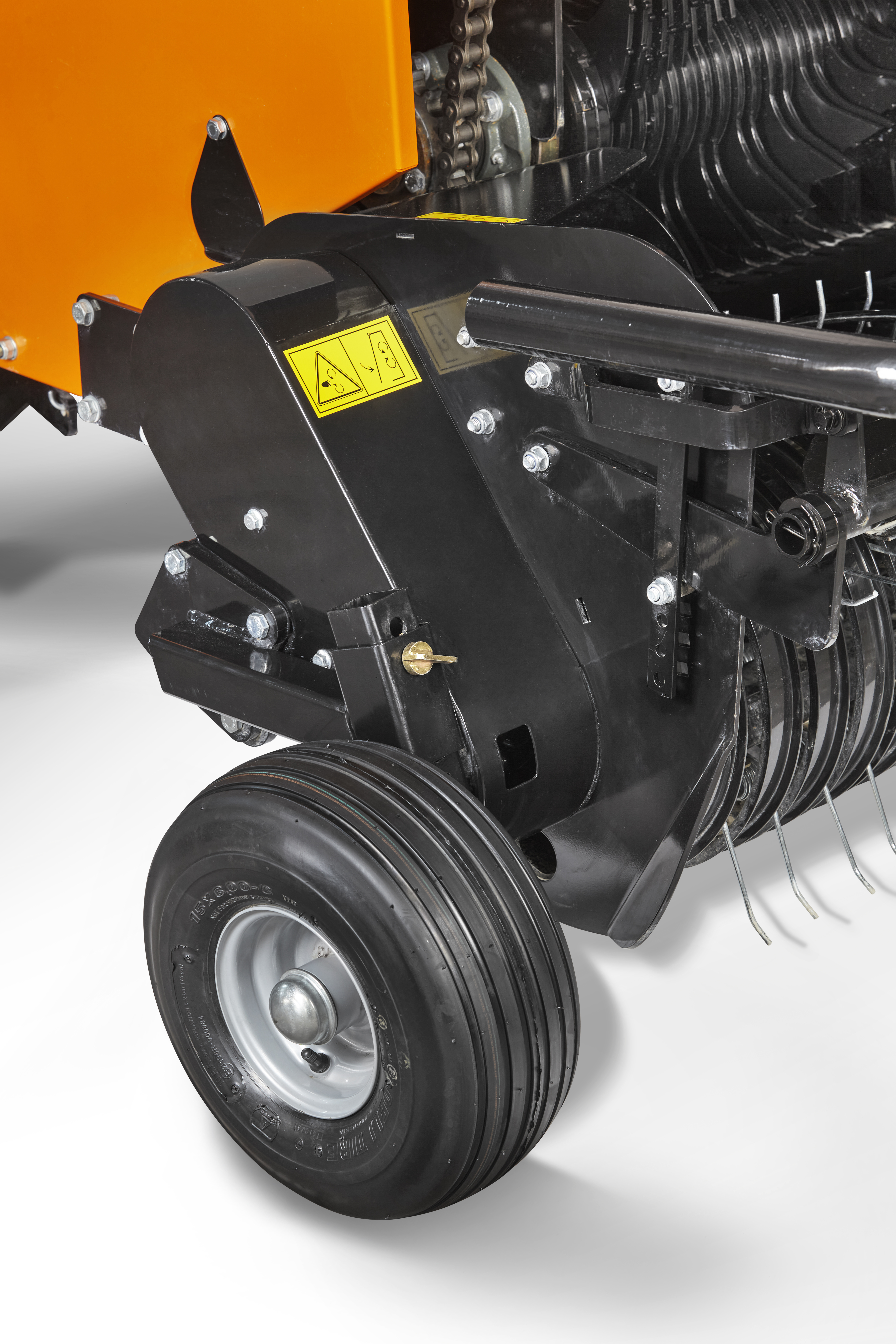

Wheels that guide the collection system on uneven terrain.

KE 1245 ROUND BALER
TECHNICAL SPECIFICATIONS
Length	mm	3800
Width (on road)	mm	2645
Height	mm	2090
Weight	kg	3250
BALE CHARACTERISTICS
Diameter	mm	1200
Bale Width	mm	1200
Capacity/Hour	Bale/h.	40-45
Weight of Straw Bale	kg	180-200
Weight of Straw Hay	kg	250-350
Weight of Straw Silage	kg	500-850
NET
Width of Net	mm	1200
Diameter of Net	mm	Max. 310
PICK-UP SYSTEM
Pickup Width	mm	1897
Tine Spacing	mm	59
Number of Rows on Frame		5
Number of Tines per Row		30
Total Number of Tines		150
Chopping Knives		24
Knife Spacing	mm	45
COLLECTOR
Number of Rotor Tines per Row		48 Pieces, 3-Sided, Star-Shaped, Interlocking
Chopper Unit		24 Knives
TRACTOR REQUIREMENTS
Power Requirement	HP	75
PTO	rpm	540
